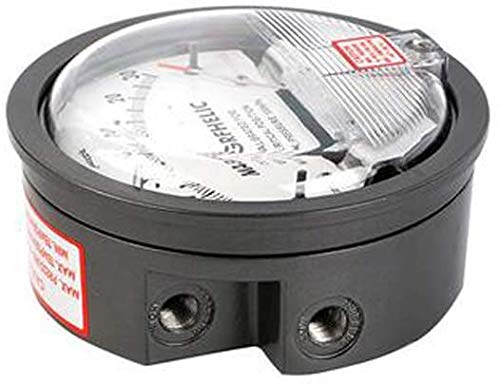

TE2000-30~30PA Micro Differential Pressure Gauge High Precision 1/8"NPT Air Pressure Meter Barometer

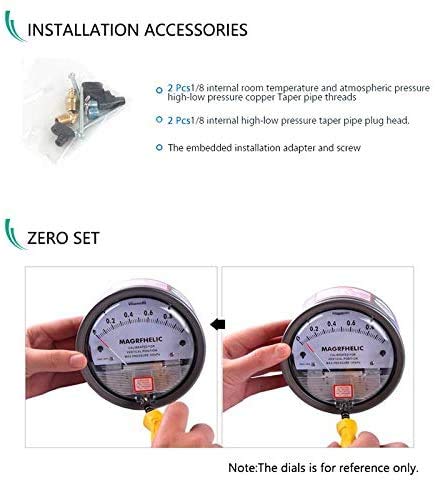

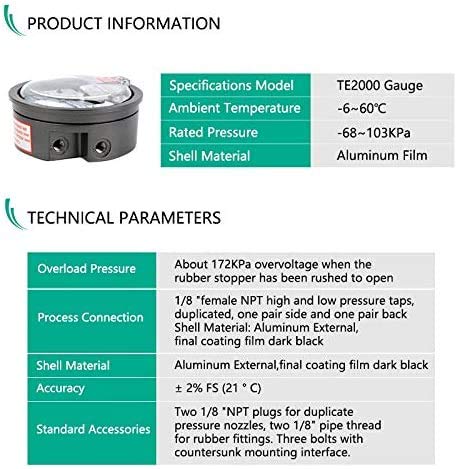

Specifications Model: TE2000 Optional Range: 30PA Rated Pressure: -68 ~ 103KPa Material: Cast aluminum film Dimensions: 4- 3/4" dia(120mm)x 2-3/16" deep(55mm) Package Size:163*150*77mm Weight: 510g Colour: Baked dark gray enamel Accuracy: Plus or minus 2% of full scale, at 70F(21.1C). Pressure Rating: 15PSI (1.03bar) Amibient Temperature Range:20~140F(-6~60C) Connections: 1/8" female NPT high and low pressure taps, duplicated, one pair side and one pair back Standard Accessories: Include two 1/8" male NPT plugs for duplicate pressure taps, two 1/8" male NPT pipe thread to rubber tubing adapters, and three flush mounting adapters with screws.

• he instrument using a larger pressure by explosion-proof membrane and diaphragm connected overvoltage protection. Note 1.Details page pictures is only for reference, part of a difference does not affect the user experience, please know it. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.Please forgive it.

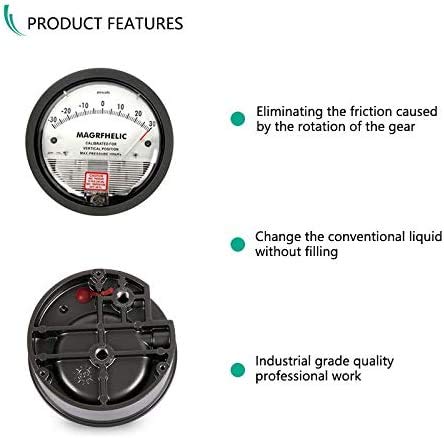

• Features 1. Virtually eliminating the friction generated by the rotation gear 2. The inner table without filling liquid. No inertia, no drift pointer movement. 3. Excellent anti-vibration, anti-jitter performance. 4. Excellent resistance to pressure overload, measurable, positive, negative or differential pressure. 5.Free and Flexible installation. 6. Has a simple structure, small size, low power consumption and high precision, suitable for almost all application areas. 7.
