Viscous Liquid Pump,10l/Min Liquid Honey Transfer Pump Paste Pump,Electric Honey Dispenser,Bi Directional Liquid Pump,for Filling or Conveying Viscous Liquid

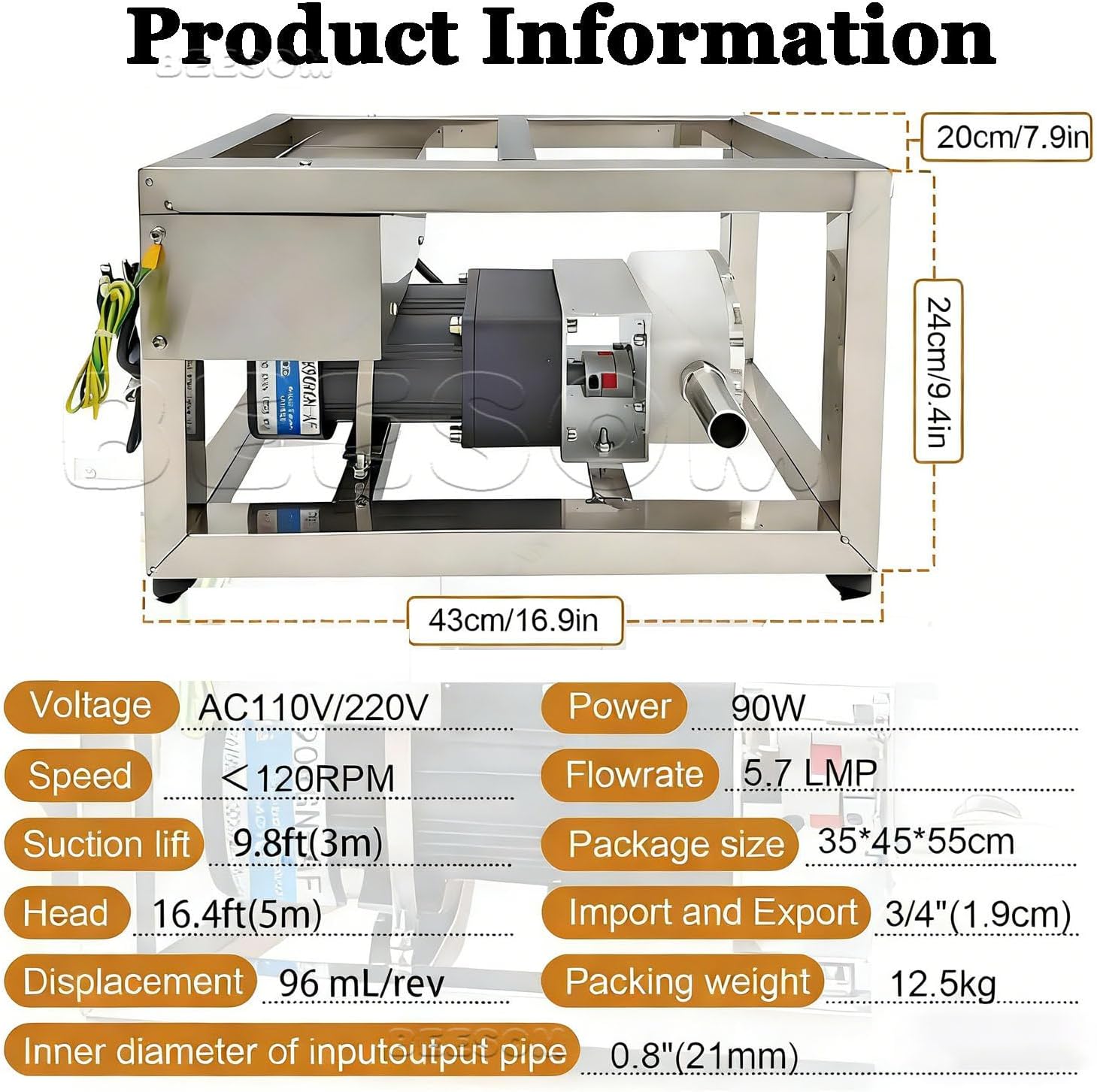

This pump is a low-speed, low-pressure gear pump, suitable for conveying or filling, and ideal for conveying viscous liquids without particles with a viscosity of 800-4000 centipoise.Actual testing: Using viscous liquids, speed 60 rpm, flow rate: 8 kg/min; This series of pumps requires material filling before use, and is not recommended for use at speeds below 75%.Note:The pump must be completely stopped before switching between forward and reverse rotation.The speed must not be lower than 70%.Not suitable for conveying organic solvents.Product:Power: 90WSpeed: 60 RPMFlow rate: 5.7 L/minSuction lift: 9.8 ft (3 m)Head: 16.4 ft (5 m)Inlet/outlet: 3/4 inch (1.9 cm)Displacement: 96 ml/rpmInlet hose inner diameter: 0.8 inch (21 mm)Outlet hose inner diameter: 0.8 inch (21 mm)Suitable products: Viscous, non-particulate liquids, such as honey, peanut butter, sesame paste, concentrated fruit juice, etc.Package includes:Viscous liquid pump *13-meter hose *1

• 【High Viscosity Fluid Conveying Pump】Liquid/paste pump is designed for viscous liquids with a viscosity of 800-4000 centipoise. Tested honey conveying capacity reaches up to 8 kg/min (corresponding to a flow rate of 5.7 L/min). Its large-displacement rotor structure (96 ml/rpm) easily handles semi-solid materials such as sesame paste and peanut butter.
• 【Dual Rotation】Cam rotor pump maintains stable performance and efficient conveying regardless of rotation, ensuring precise flow and pressure control. The pump head is made of non-stick plastic, ensuring structural stability and suitability for food liquids of various viscosities
• 【Powerful Motor】Peanut pump uses a 90-watt pure copper motor with a suction lift of 3 meters and a discharge head of 5 meters, capable of stably conveying 9 kg of viscous media. The unique continuously variable transmission (CVT) function supports 60-100% speed adjustment (standard base speed of 60 rpm), meeting the precise flow control needs of products with different viscosities, from honey to concentrated fruit juice

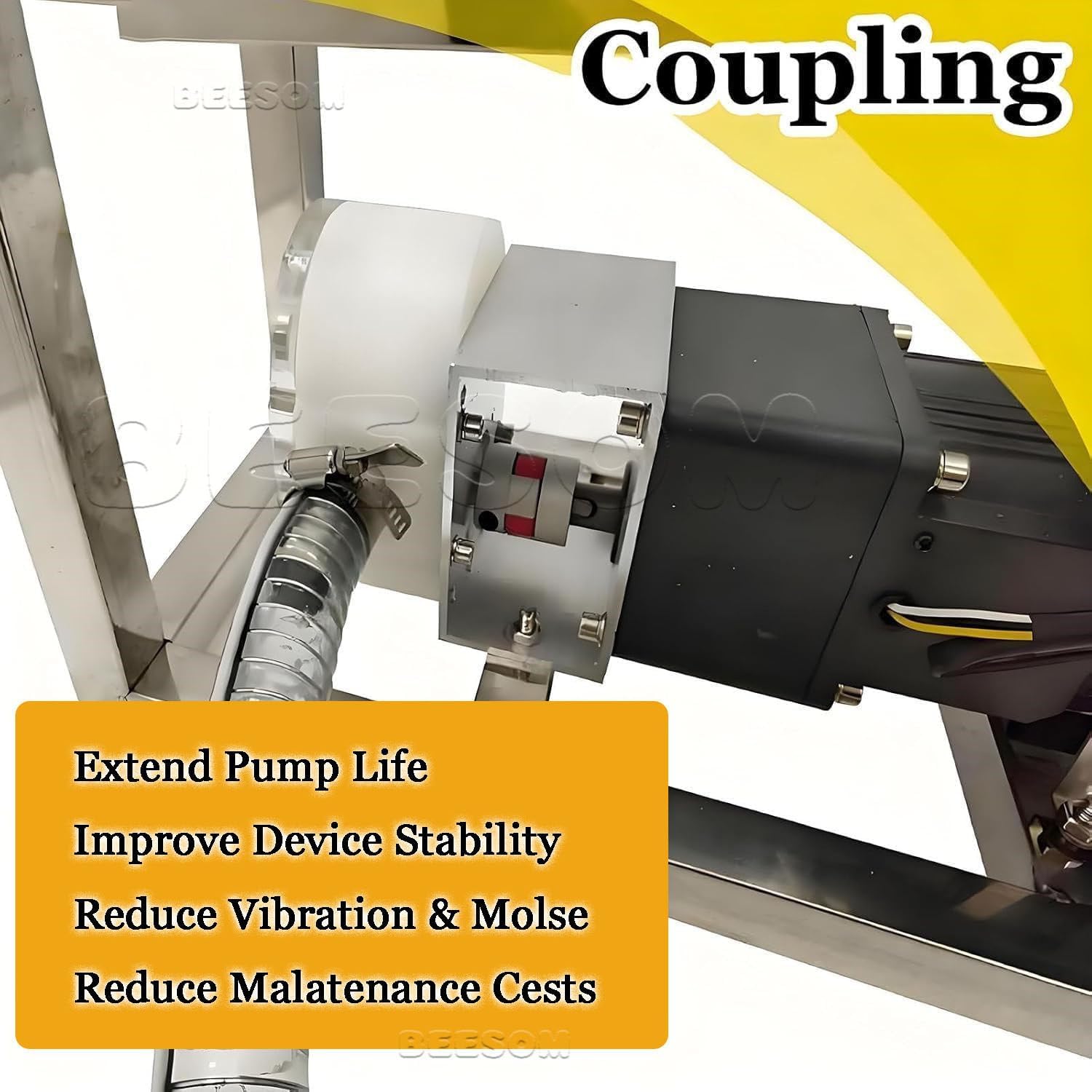

• 【Stable Filling】Liquid transfer pump is equipped with an internal coupling, which effectively reduces vibration and noise during operation, significantly improving the stability of equipment operation. Four anti-slip, silent feet are located at the bottom of the pump body to ensure that the pump will not shake or shift during liquid filling
• 【Easy to Clean】Food machinery requires timely cleaning after use. The stainless steel casing has a smooth surface that is not easily stained. The bolt-on pump head is removable, facilitating blind spot cleaning and greatly saving cleaning time
